Double Flap Valve
Double Flap Valve – Series 1913
High-Performance Airlock and Dust-Tight Discharge Valve
The Double Flap Valve – Series 1913 from SUDE Engineering Private Limited is a robust mechanical isolation and airlock solution designed for the controlled discharge of bulk solids from hoppers, silos, dust collectors, and material handling systems. The valve incorporates two sequentially operated flaps—upper and lower—that function together to allow material flow while maintaining effective isolation between the process system and the surrounding environment.
This operating principle ensures that when one flap opens to discharge material, the other remains closed, creating a reliable airlock that prevents air ingress or gas escape. As a result, the valve delivers consistent dust-tight performance, making it especially suitable for handling fine powders, abrasive materials, and high-temperature particulates. The controlled discharge mechanism minimizes dust emissions, reduces material loss, and improves overall plant safety and cleanliness.
Designed for demanding industrial conditions, the valve features a rigid body construction and durable sealing arrangement capable of withstanding abrasion, thermal stress, and continuous operation. Its robust design ensures long service life and reliable performance in challenging environments. The valve is typically installed beneath bag filters, cyclones, electrostatic precipitators, silos, and hoppers, enabling seamless integration into bulk material handling and dust extraction systems.
The valve supports manual, pneumatic, or electric actuation, allowing easy integration with automated process control systems. Its dependable airlock function helps maintain system pressure balance, protects downstream equipment, and supports compliance with environmental and emission control requirements.
Widely used in cement plants, power plants, steel and metallurgical industries, chemical processing units, and bulk material handling applications, this double flap valve reflects SUDE Engineering Private Limited’s commitment to durable engineering, operational safety, and high-performance industrial solutions.
Technical Specifications
Parameter
Shapes Available
Rectangular and Square
Size Range
Up to 150 mm to 1200 mm
Flow Media
Fly ash, cement, sand, limestone, grain, biomass, powder
Blade Type
Dual flap gates operated in timed sequence
Sealing Efficiency
Dust-tight; maintains pressure differential up to ±50 mbar
Sealing Type
Mechanical sealing with tight seat and flap overlap
Temperature Range
Up to 450°C (higher with special alloys or insulation)
Material of Construction
Cast iron, carbon steel, stainless steel (304/316), or wear-resistant alloy
Pressure Rating
Typically, ±50 mbar (customizable)
Drive Operations
Mechanical cam, pneumatic cylinder, or motorized actuator
Testing Standards
Leak and functional cycle testing as per ISO / internal QC
Design Standards
Custom engineered per process design and material flow properties
Working Principle:
Filling Stage
The upper flap opens, allowing bulk material to enter the intermediate chamber. The lower flap remains closed, maintaining downstream pressure integrity.
Discharge Stage
The upper flap closes, isolating the material above. The lower flap opens, discharging material while preventing backflow of air or gas.
Repeat Cycle
The process operates cyclically, controlled through timers, level sensors, or PLC-based logic, ensuring synchronized flap operation for continuous and dust-tight discharge.
Key Features & Advantages
- Maintains effective airlock and pressure seal without rotary parts
- Reliable handling of abrasive, hot, or cohesive materials
- Low maintenance and high durability compared to rotary airlocks
- Ideal for both batch and continuous operation
- Dust-tight operation ensures environmental compliance
Why Choose Double Flap Valve – Series 1913?
- Zero Air Leakage: Dual-stage flap design maintains airtight integrity.
- Built for Durability: Fabricated with wear-resistant alloys and heavy-duty hinges.
- Custom Automation Options: PLC-based interlocks for fully automatic operation.
- Proven in Harsh Conditions: Performs efficiently in fly ash, cement, and biomass applications.
- Maintenance-Friendly: Fewer moving parts ensure long-term reliability and low downtime.
SUDE Double Flap Valve Advantage:
SUDE Engineering’s Double Flap Valves are precision-engineered for reliable material discharge, pressure retention, and dust-free performance.
Each unit is designed to handle abrasive and high-temperature materials, ensuring extended life and smooth operation in demanding industrial environments.
Applications
Fly ash handling in thermal power plants

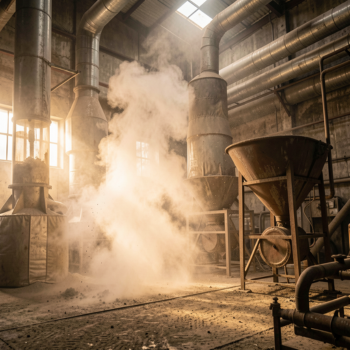

Dust discharge from bag filters, cyclones, and hoppers
Cement and lime industries
Chemical and fertilizer processing plants
Grain, biomass, and incineration systems
