Septum Valve – Series 1931
Septum Valve – Series 1931
The Septum Valve – Series 1931 from SUDE Engineering Private Limited is a high-precision valve assembly designed for accurate pressure regulation in blast furnace top gas or cold-blast systems. It features multiple independently operated butterfly discs within a common housing, enabling precise modulation of gas flow and built-in redundancy for enhanced reliability.
Engineered for clean or semi-clean gas process lines, the valve ensures stable flow and consistent pressure control, even under demanding industrial conditions. Its multi-disc configuration allows fine adjustment of pressure and flow, reducing fluctuations and improving overall system performance.
Constructed from durable, corrosion-resistant materials, the Septum Valve is capable of withstanding high temperatures, cyclic operation, and industrial gas conditions, ensuring long-term reliability and minimal maintenance. The valve’s design prioritizes smooth operation, airtight sealing, and precise control, making it ideal for critical blast furnace and process applications.
The valve supports manual, pneumatic, or electric actuation, allowing integration with automated control systems for responsive and accurate process management. Widely applied in steel plants, chemical processing units, and industrial gas systems, the Septum Valve reflects SUDE Engineering Private Limited’s commitment to precision engineering, operational safety, and high-performance industrial solutions.
Technical Specifications
Parameter
Valve Type
Multi-butterfly valve assembly within a single casing
Shapes Available
Circular (common cylindrical housing)
Size Range
Up to Ø3500 mm
Flow Media
Furnace top gas / cold blast air
Blade Type
Multiple butterfly discs for individual flow control
Sealing Efficiency
Non-contacting sealing with tight shut-off options
Sealing Type
Stainless steel or ceramic-lined internal surface
Temperature Range
Up to 250 °C
Material of Construction
Carbon steel body with stainless steel or ceramic internal cladding
Pressure Rating
Up to 0.3 MPa (≈3 bar)
Drive Operation
Individually driven electric or pneumatic actuators
End Connections
Flanged, vertical assembly for horizontal pipelines
Special Features
Water spray nozzles for dust suppression and flushing
Design Standards
Custom-engineered for blast furnace pressure regulation
Testing Standards
Functional, leakage, and pressure-tested as per industrial norms
Working Principle:
Multiple Valve Modulation
One or more butterfly discs modulate flow dynamically while others remain preset to maintain desired pressure.
Erosion-Resistant Construction
The valve interior is protected with stainless steel cladding or ceramic coatings, ensuring durability under dusty or abrasive conditions.
Adaptive Operation
Handles clean to semi-clean gas streams; water spray nozzles remove dust accumulation and enhance performance.
Efficient Actuation
Each disc is independently operated by electric or pneumatic actuators, allowing flexible, precise, and reliable control.
Key Features & Advantages
- Modular multi-disc design offers redundancy and fine control
- Handles large diameters up to 3.5 m efficiently
- Durable internals resist erosion and dust wear
- Low maintenance with externally mounted actuators
- Compatible with both manual and automated operation systems
Why Choose ?
- Engineered for stable blast furnace pressure regulation
- Proven reliability in harsh industrial environments
- Backed by Sude’s advanced fabrication and testing infrastructure
- Customizable with water spray, ceramic coating, and control options
- Ensures long service life and consistent performance
SUDE Septum Valve – Series 1931 Advantage:
The modular multi-disc design provides redundancy and precise control, while efficiently handling large diameters up to 3.5 meters.
Its durable internals resist erosion and dust wear, and with externally mounted actuators, it ensures low maintenance and compatibility with both manual and automated operation systems.
Applications

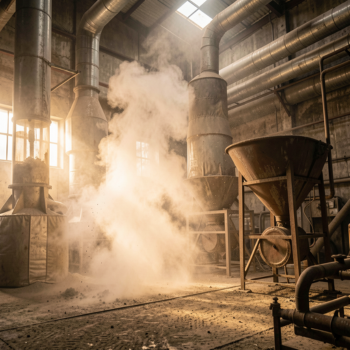

Blast furnace throat pressure regulation
Cold-blast air or process gas control systems

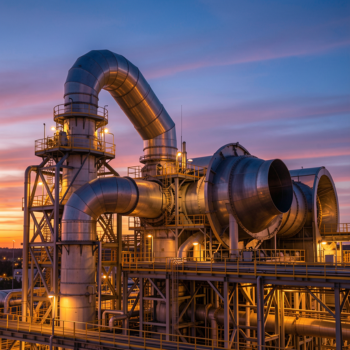

Precision modulation in metallurgical and process industries

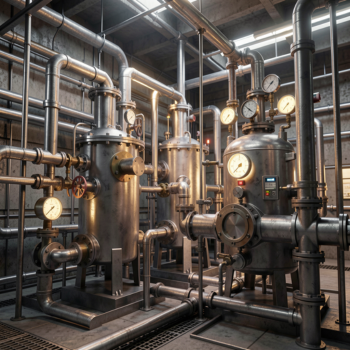

Systems handling semi-clean gases requiring accurate flow management
