Pneumatic Operated Zero Bacteria Valve

Pneumatic Operated Zero Bacteria Valve -1267 and 1367 series

SUDE Pneumatic Operated Zero Bacteria Valves are advanced hygienic control valves engineered for contamination-free, high-speed, and reliable flow control in critical process industries. Designed with a zero dead-leg internal geometry, full drainability, and ultra-smooth surface finish, these valves eliminate product hold-up, bacterial growth, and cross-contamination.

Manufactured from AISI 316 / 316L stainless steel with FDA-compliant sealing materials, the valves are fully compatible with CIP (Clean-in-Place) and SIP (Steam-in-Place) processes. Pneumatic actuation ensures fast response, high cycle life, and consistent performance, making them ideal for automated and safety-critical operations.

Available in double-acting and spring-return (fail-safe) configurations, these valves provide secure operation even during air failure, ensuring maximum process safety.

Technical Specifications

Parameter
Specification
Valve Type
Pneumatic Operated Zero Bacteria Valve
Design
Full Bore, Zero Hold-Up, Hygienic
Body Material
Stainless Steel AISI 316 / 316L
Seat & Seals
PTFE / FDA-Approved Elastomers
Surface Finish
Ra ≤ 0.8 µm (Electropolished optional)
End Connections
Sanitary Clamp / Butt Weld / I-Line
Operation
ON–OFF / Modulating
Actuation
Pneumatic Actuator
Actuator Type
Spring Return / Double Acting
Air Pressure
3.5 – 8.5 kg/cm²
Cleaning
CIP / SIP Compatible
Compliance
FDA & Hygienic Process Standards

Design & Construction:

Zero dead-space internal geometry with full-bore hygienic construction ensures complete drainability and prevents contamination in sterile applications.

Working Principle:

Open Position
Pneumatic actuator moves valve fully open
Modulating Position
Positioner controls proportional flow
Closed Position
Valve seals tightly ensuring leak-proof shut-off
Spring-return design provides automatic safe positioning during air failure.

Automation & Control Options:

  • Control Modes: On/Off, Modulating (via Positioner)
  • Air Control: Solenoid Valves (3/2, 5/2), FRL Unit
  • Feedback Systems: Limit Switch Box, Position Transmitter

Key Features & Advantages

  • Zero dead-space hygienic design
  • Smooth internal surfaces eliminate bacterial growth
  • Fast pneumatic response for high-cycle operation
  • Full bore for unobstructed product flow
  • CIP / SIP compatible construction
  • FDA-approved sealing materials
  • Fail-safe operation available

Optional Accessories:

  • Air Filter Regulator (FRL Unit)
  • Limit Switch Box
  • Valve Positioner
  • I/P Converter
  • Position Transmitter
  • Manual Override
  • Local Control Panel
  • PLC / DCS interface

Industries Served

Food & Beverage processing

Food & Beverage processing

Dairy & Brewery plants

Dairy & Brewery plants

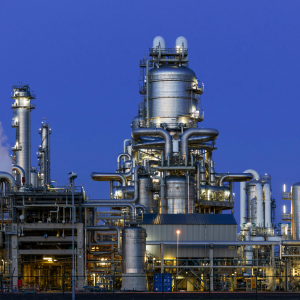

Pharmaceutical manufacturing

Pharmaceutical manufacturing

Biotechnology & fermentation systems

Biotechnology & fermentation systems

Typical Applications:

Sterile fluid handling, clean steam lines, hygienic process automation, contamination-free product transfer systems.
