Pneumatic Operated 2-Way Plug Valve
Pneumatic Operated 2-Way Plug Valve -1460 Series
The Pneumatic Operated 2-Way Plug Valve is a lubricated taper plug valve designed for reliable ON–OFF isolation and throttling control in demanding industrial applications. The valve operates on a quarter-turn rotary motion, providing fast response, compact installation, and bubble-tight shut-off.
The lubricated taper plug design minimizes friction between the plug and valve body, ensuring smooth operation, low operating torque, and consistent sealing over long service life. These valves are available in regular and short pattern construction with square stems for positive torque transmission.
For larger sizes and higher torque requirements, the valve is assembled with heavy-duty pneumatic actuators, selected based on service pressure, media type, and operating conditions. The pneumatic actuation ensures quick operation, fail-safe capability, and easy integration with automation systems, making the valve suitable for continuous industrial service.
Technical Specifications
Parameter
Valve Type
Pneumatic Operated Lubricated Taper Plug Valve
Series
1460 Series
Sizes
15mm to 600mm
End Connections
Flanged
Construction
egular Pattern / Short Pattern
Body Material
Cast Iron IS 210 Gr. FG220, Cast Steel, Stainless steel
Plug Material
CI IS 210 FG220 / Carbon Steel ASTM A216 WCB
Valve Action
Normally Open / Normally Closed
Flow Characteristic
ON–OFF / Linear Control up to 60°
Actuation
Pneumatic Rotary Actuator
Operation
Quarter-Turn
Air Pressure
3.5–8.5 kg/cm² (depending on size & service)
Design & Construction:
Lubricated taper plug design ensures smooth rotary motion, reduced wear, and reliable sealing even under frequent operation.
Working Principle:
Working Principle
The valve operates by rotating a lubricated tapered plug inside the valve body
Open Position
Plug port aligns with pipeline allowing full flow
Modulating Position
Partial rotation provides controlled throttling
Closed Position
Plug blocks the flow path ensuring tight shut-off
The pneumatic actuator converts air pressure into rotary motion for fast and repeatable positioning.
The pneumatic actuator converts air pressure into rotary motion for fast and repeatable positioning.
Automation & Control Options:
- Control Modes: On/Off, Modulating (via Positioner), Inching
- Actuator Types: Double Acting (Stay-Put), Spring Return (Fail-Safe)
- Air Control: Solenoid Valves (3/2, 5/2), FRL Unit (Filter Regulator Lubricator)
- Position Control: Pneumatic / Electro-Pneumatic Positioner, I/P Converter
- Instrumentation: PID Controller (PT-100), Pressure Transmitter
Key Features & Advantages
- Lubricated taper plug for smooth operation
- Low operating torque and reduced actuator load
- Tight sealing for leak-free service
- Compact quarter-turn design
- Square stem for positive actuation
- Suitable for frequent cycling
- Long service life with minimal maintenance
Optional Accessories:
- Pressure Regulator
- Filter Regulator with Lubricator (FRL)
- Limit Switches
- Gearbox with Handwheel
- Valve Positioner
- Electro-Pneumatic Positioner
- Position Indicator
- Position Transmitter
- Travel Stops & Closing Limiter
- PID Controller with PT-100 Sensor
- Pressure Transmitter with Control Panel
Industries Served

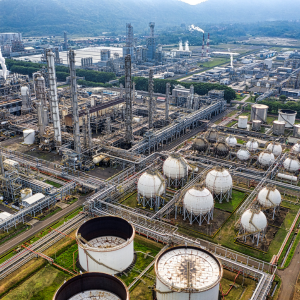

Food & Beverage Industry
Chemical & Petrochemical Plants
Pulp & Paper Industry
Atomic Energy Facilities
Typical Applications:
Air, Water, Oil, Gas & Steam systems requiring fast, reliable isolation and throttling control.
