Electric Operated Zero Bacteria Valve
Electric Operated Zero Bacteria Valve - 1257 and 1357 series
SUDE Electric Operated Zero Bacteria Valves are precision-engineered hygienic valves designed to ensure contamination-free, sterile, and reliable flow control in critical process industries. Built with crevice-free internal geometry, full drainability, and ultra-smooth surface finish, these valves eliminate product hold-up and prevent bacterial growth.
Manufactured from AISI 316 / 316L stainless steel with FDA-compliant sealing materials, the valves are fully compatible with CIP (Clean-in-Place) and SIP (Steam-in-Place) processes. The integrated electric actuator enables accurate ON–OFF and modulating control, ensuring repeatable performance and seamless automation.
Designed for modern process plants, these valves integrate effortlessly with PLC / DCS systems, making them ideal for food, pharmaceutical, biotech, and high-purity applications.
Technical Specifications
Parameter
Valve Type
Electric Operated Zero Bacteria Valve
Design
Full Bore, Hygienic, Zero Hold-Up
Body Material
AISI 316 / 316L Stainless Steel
Seat Material
PTFE / FDA-Approved Elastomers
Surface Finish
Ra ≤ 0.8 µm (Electro-Polished optional)
End Connections
Sanitary Clamp / Butt Weld / I-Line
Operation
ON–OFF / Modulating
Actuation
Electric Actuator (Single / Three Phase)
Temperature Suitability
CIP / SIP compatible
Compliance
FDA, Hygienic Process Standards
Design & Construction:
Full-bore hygienic design with smooth internal surfaces and zero hold-up geometry ensures complete drainability and contamination-free operation suitable for sterile processes.
Working Principle:
Open Position
Valve opens fully allowing smooth unrestricted flow
Modulating Position
Electric actuator controls flow based on control signal
Closed Position
Valve seats tightly ensuring leak-proof contamination-free shut-off
Hygienic geometry ensures complete drainage preventing bacterial formation.
Hygienic geometry ensures complete drainage preventing bacterial formation.
Automation & Control Options:
- Control Modes: On/Off, Modulating (4–20 mA / 0–10 V)
- Control Modes: On/Off, Modulating (4–20 mA / 0–10 V)
- Feedback Systems: Limit Switches, Position Transmitter, Potentiometer
- Communication: PLC / DCS Integration (4–20 mA, 0–10 V signals)
- Control Interface: Local Control Panel (LCP), Remote Operation, Integral Starter
Key Features & Advantages
- Zero dead-space hygienic design
- Smooth internal surfaces prevent bacterial growth
- Full bore for unobstructed flow
- CIP / SIP compatible construction
- FDA-approved sealing materials
- Leak-proof and contamination-free operation
- Automation-ready electric actuation
Optional Accessories:
- Limit switches
- Position transmitter
- Potentiometer for feedback
- Local Control Panel (LCP)
- Integral starter
- Thermostat & space heater
- PLC / DCS interface
Industries Served

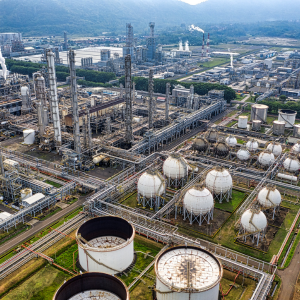

Food & Beverage processing

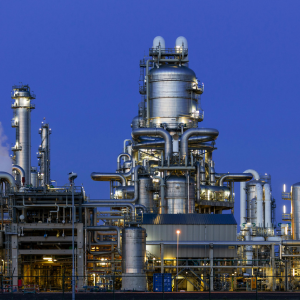

Pharmaceutical manufacturing
Biotechnology & fermentation systems

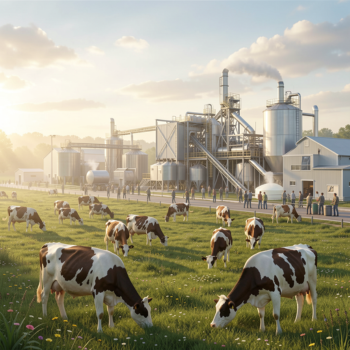

Dairy & brewery plants
Typical Applications:
Clean steam systems, sterile fluid transfer lines, hygienic process pipelines, and contamination-free automation applications.
