Crystallizer Discharge Gate Valve
Crystallizer Discharge Gate Valve – Series 1923
High-Performance Isolation Valve for Slurry and Crystallization Processes
The Crystallizer Discharge Gate Valve – Series 1923 from SUDE Engineering Private Limited is a precision-engineered isolation valve specifically designed for installation at the bottom outlets of crystallizers, reactors, and slurry-handling vessels. It is built to handle viscous, abrasive, and solid-laden media while ensuring smooth discharge, tight shut-off, and zero dead space, which is critical for efficient and leak-free operation in industrial crystallization processes.
Its self-draining and flushable design prevents material accumulation, minimizes contamination risk, and facilitates cleaning, making it ideal for chemical, fertilizer, and salt production where process hygiene and material integrity are essential. The valve’s robust construction allows it to withstand abrasive slurries and high-density media while maintaining reliable performance over extended operational cycles.
Precision-machined sealing surfaces and a durable body design ensure consistent tight shut-off, even under extreme conditions, reducing maintenance needs and enhancing plant safety. The valve can be integrated with manual, pneumatic, or electric actuation, allowing seamless operation within automated process control systems.
Widely applied in chemical processing, fertilizer manufacturing, salt crystallization, and other slurry-handling industries, this valve reflects SUDE Engineering Private Limited’s commitment to innovative design, operational reliability, and high-performance industrial solutions.
Technical Specifications
Parameter
Shapes Available
Round or rectangular outlet mounting
Size Range
DN 80 to DN 1000 (custom sizes on request)
Flow Media
Slurry, crystals, viscous or semi-solid mixtures
Blade Type
Knife or flat gate type (rising / non-rising stem)
Sealing Efficiency
Leak-tight shut-off with flush seat design
Sealing Type
Metal-to-metal, PTFE, or ceramic lined seat
Temperature Range
–10°C to +300°C (depending on trim and seal material)
Material of Construction
SS304, SS316, Duplex, Hastelloy, Titanium
Pressure Rating
Up to 10 bar (customizable for higher ratings)
Drive Operations
Manual, pneumatic, hydraulic, or electric actuator
Testing Standards
API 598 / BS EN 12266 / IS 14846
Design Standards
Custom-engineered to crystallizer and reactor geometry
Working Principle:
Open Position
The gate retracts fully from the discharge path, allowing unrestricted flow of slurry or crystalline material.
Discharge Flow
Gravity-assisted discharge enables smooth evacuation of crystallizer contents and supports batch or continuous operation.
Closed Position
The gate seats flush with the outlet cone or inclined face, preventing backflow, bridging, or material hang-up.
Sealing System
Scraper rings, gland packing, and optional flushing ports prevent buildup and ensure leak-free operation.
Key Features & Advantages
- Zero-dead-space design ensures full and clean discharge
- Rugged, clog-free operation for heavy crystalline and slurry media
- Customizable discharge angles with optional flushing connections
- Compact and maintenance-friendly construction for harsh service
- Proven long-term sealing reliability under abrasive conditions
Why Choose Crystallizer Discharge Gate Valve – Series 1923?
- Purpose-built for crystallizer outlet and slurry discharge applications
- Manufactured using corrosion- and wear-resistant alloys
- Field-proven performance in chemical and fertilizer industries
- Backed by Sude Engineering’s process design and customization expertise
SUDE Crystallizer Discharge Gate Valve Advantage:
The zero-dead-space design ensures complete and clean discharge, while its rugged construction enables clog-free operation even with heavy crystalline media.
The zero-dead-space design ensures complete and clean discharge, while its rugged construction enables clog-free operation even with heavy crystalline media.
Applications

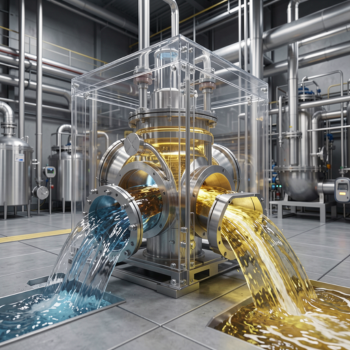

Crystallizer and reactor bottom discharge systems

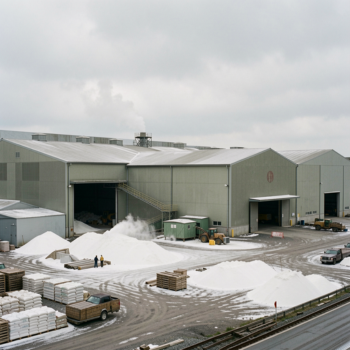

Salt and sugar processing plants

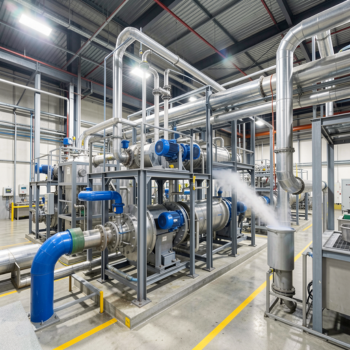

Fertilizer and evaporator discharge systems

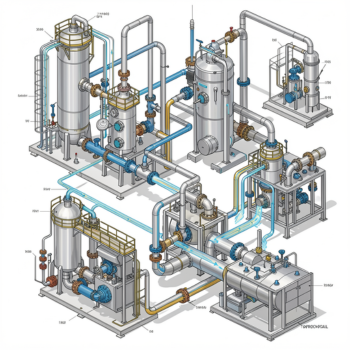

Petrochemical and chemical slurry handling units

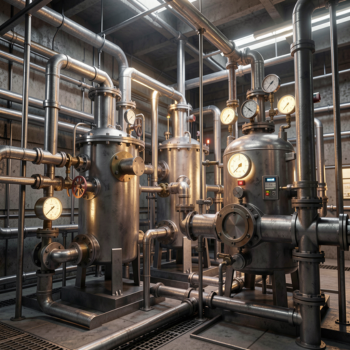

Mineral and process industry reactors
